WLCT three-phase current transformer

1
2
넳 넲

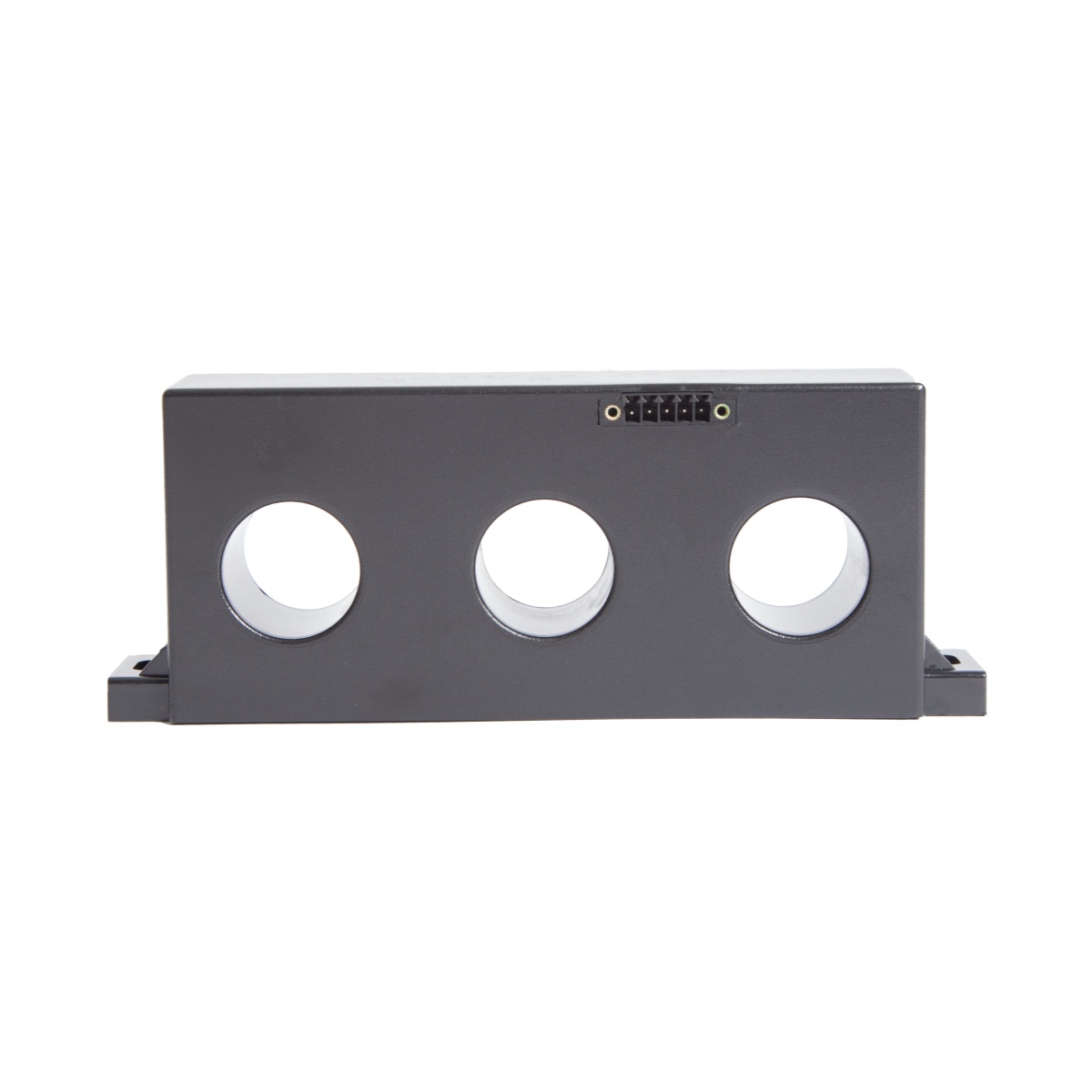

WLCTthree-phase current transformer

three-phase current transformer

Three-phase Current Transformer

three-phase current transformer is divided into 0.5m, 1m, 2m and 3m. The left terminal of the outgoing line is connected to the main body of the device, and the right terminal is connected to the three-phase current transformer WLCT-* A. * CT * X-0.5 represents a line length of 0.5m, * CT * X-1 represents a line length of 1m, * CT * X-2 represents a line length of 2m, * CT * X-3 represents a line length of 3m.

WLCT-100Aand below current transformer dimension drawing

WLCT-160ACurrent Transformer Dimensions

WLCT-400ACurrent Transformer Dimensions

external current transformer

transformerSecondary side is 5A, protection level5P10, each device is equipped with three.

Model

Specifications

Rated current range

cable hole

ZT40-500/5

500A/5A

250A~ 500A

31mm× 42mm

ZT60-820/5

820A/5A

410A~ 820A

32mm× 62mm

ZT40-500/5Current Transformer Installation Diagram

ZT60-820/5Current Transformer Installation Diagram
