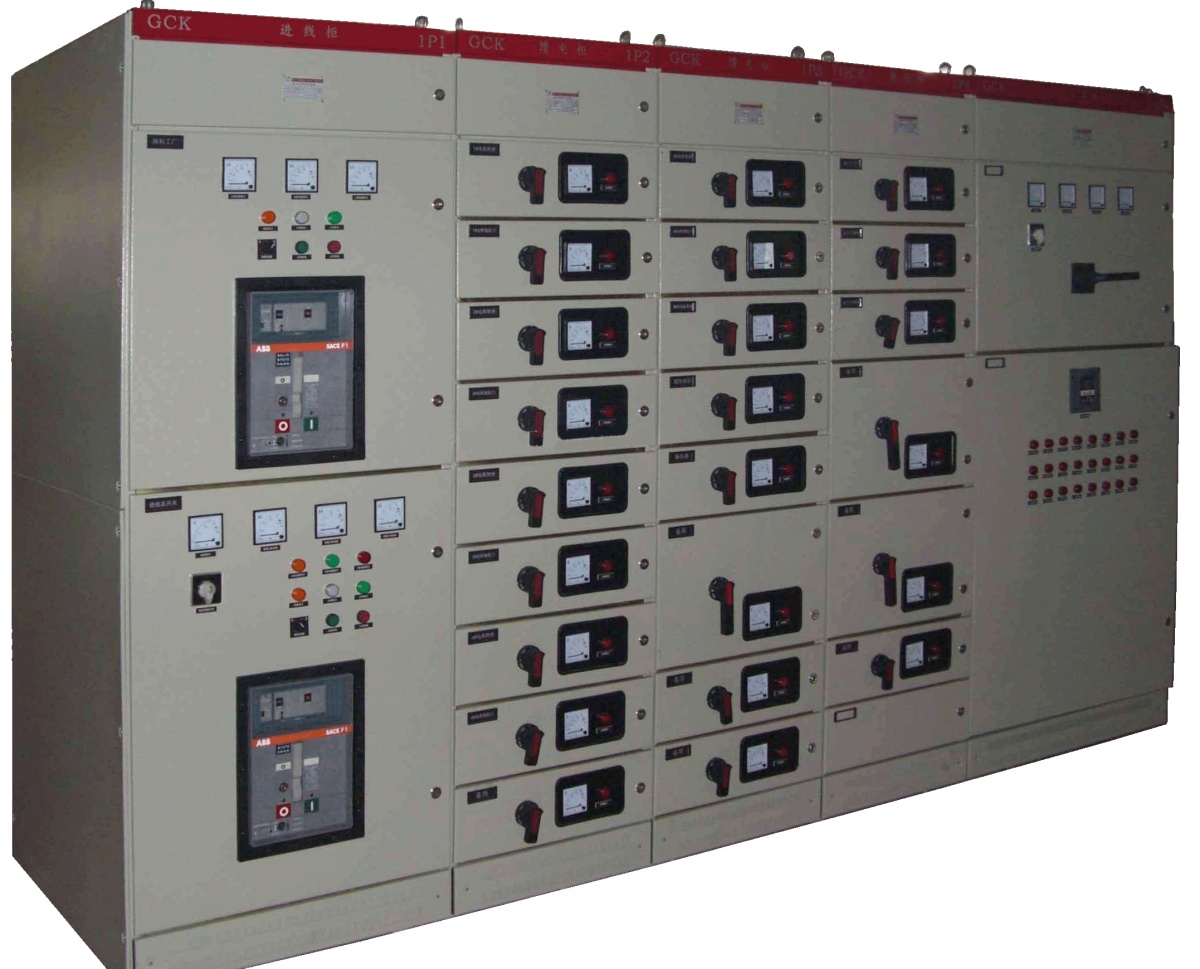

GCK2000 type low voltage switch cabinet

GCK-01副本
넳 넲
product introduction:
This product is suitable for power users such as industrial and mining enterprises, power transmission and transformation stations, petrochemical systems and high-rise buildings. As a power distribution system with AC 50Hz, rated working voltage up to 690V and maximum working current up to 2500A, it is used for power conversion, distribution, control and protection of power distribution equipment such as power distribution, motor control and lighting, and can meet the speci


product features:

  1. frame is flexible in combination. The main frame is assembled with modular C- shaped columns and G-shaped beams, and the structure is firm and stable. Modular fixing holes are reserved for the frame, which is conducive to fast and reliable connection of various components.
  2. bus system is stable, the rectangular bus system is adopted, the current carrying capacity is large, the mechanical strength is high, and the heat dissipation performance is good, which ensures that the bus system is in a stable state in the long-term work.
  3. position indication is reliable. The drawer has clear three positions of work, test and isolation. When the drawer reaches the three positions, there will be corresponding position indication on the door panel. Drawer interlocking mechanism, small size, flexible operation.
  4. intelligent power distribution solutions, configure Wanlong cloud platform, improve the information level of low-voltage distribution cabinets, and provide users with digital solutions and services.

technical parameters:

Serial Number

Project

Unit

technical parameters

1

Rated operating voltage

V

400

2

Rated insulation voltage

V

690

3

Impulse withstand voltage

kV

8

4

Power frequency withstand voltage

V

2000

5

Rated current of main bus

A

≤ 2500

6

main bus short-time withstand current

kA

50

7

Main bus peak withstand current

kA

105

8

Enclosure rating

IP30

9

Overall dimension (width × height × depth)

mm

800(600, 1000)× 2200 × 800(600, 1000)

Product Details
